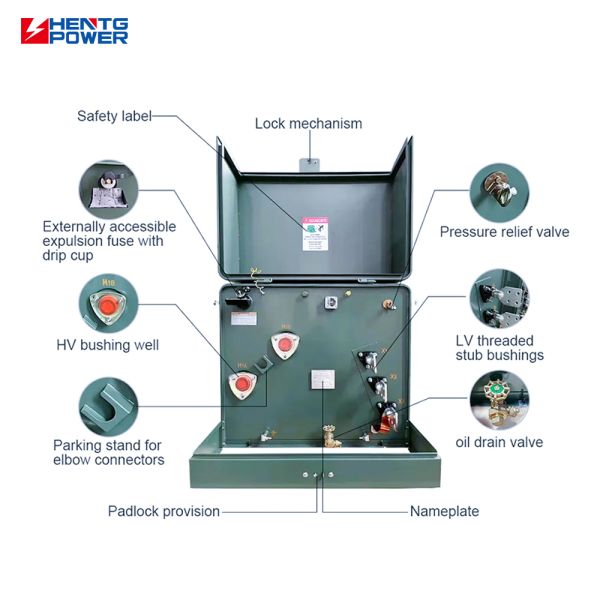

75kVA 167 Kva Single Phase Distribution Transformer Pad Mounted IEEE Standard

Name: 75kVA 167 Kva Single Phase Distribution Transformer Pad Mounted IEEE Standard
Brand: HENTG Power
Price: 1 USD

Wholesale 75kVA 167 Kva Single Phase Distribution Transformer Pad Mounted IEEE Standard from china suppliers

Place of Origin : China

Brand Name : HENTG Power

Model Number : S11

MOQ : 1

Certification : CE

Phase : Single Phase

application : power transformer

Output Voltage : 110V, 220V, 380V, 400V , 440V, 480V

Input Voltage : 11kV, 10.5kV, 3kV, 6.6kV, 6.3kV, 35kV, 12.47kV, 6kV

Product name : single phase pad mounted transformer

Type : Pad Mounted Transformer

Standard : DOE/IEC60076/IEEE

Warranty : 2 Years

Vector Group : Dyn11/Yyn0/Yd11/YNd11

MOQ : 1 Set

Usage : Outdoor Power Line Operation

High Voltage : 11kv 10kv 6.3kv 6kv

Low Voltage : 120-240/240-480/347/600

Customized : Accept

Contact Now

75kVA 167 Kva 14400v Single Phase Distribution Transformer Pad Mounted IEEE Standard

75kVA 167 Kva Single Phase Distribution Transformer Pad Mounted IEEE Standard

Product Specifications

Attribute	Value
Phase	Single Phase
Application	Power Transformer
Output Voltage	110V, 220V, 380V, 400V, 440V, 480V
Input Voltage	11kV, 10.5kV, 3kV, 6.6kV, 6.3kV, 35kV, 12.47kV, 6kV
Type	Pad Mounted Transformer
Standard	DOE/IEC60076/IEEE
Warranty	2 Years
Vector Group	Dyn11/Yyn0/Yd11/YNd11
MOQ	1 Set
Usage	Outdoor Power Line Operation
High Voltage	11kv 10kv 6.3kv 6kv
Low Voltage	120-240/240-480/347/600
Customized	Accept

Product Description

HENTG's Single Phase Pad Mounted Oil-Immersed Distribution Transformer (15kVA~500kVA) is designed for reliable, safe, and efficient power distribution in residential, commercial, and light industrial applications. Featuring a compact, tamper-proof, and weather-resistant pad-mounted design, this transformer ensures minimal maintenance and excellent performance in outdoor environments.

Key Features

Customizable Ratings & Terminals: Primary voltage, secondary voltage, bushing type, and tank finish can all be customized.
Available in Loop or Radial Feed: Loop feed models support networked underground distribution.
Environmental Ready: Designed for temperature ranges of -40°C to +50°C, IP54 or better.
Industry Compliance: Fully compliant with ANSI, UL, IEEE, and other utility standards.

With high-quality silicon steel cores and copper or aluminum windings, it delivers low losses, high efficiency, and long service life. Ideal for use in underground or ground-level power systems.

Technical Specifications

Capacity (KVA)	HV	Tapping range	LV	No-load loss	Load loss	Dimension(mm)	Efficiency
15	2400-34500	±2X2.5%	110-690	60-150	330-1150	610-740	98.82%
25							98.95%
37.5							99.05%
50							99.11%
75							99.19%
100							99.25%
167							99.33%
250							99.39%
333							99.43%
500							99.49%

Ordering Process

75kVA 167 Kva Single Phase Distribution Transformer Pad Mounted IEEE Standard

Step 1: Inquiry & Quotation

We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. We will provide you with reasonable quotations and payment terms. Our professional drawing team will confirm all technical details with you within 7 days after payment.

Step 2: Production & Quality Control

After finalizing the production drawing, we prepare stock, manufacture, and conduct rigorous quality inspection before shipment. We provide QC reports and test reports for all products, with optional Factory Acceptance Test (FAT).

Step 3: Installation & Support

We provide professional installation guidance and on-site support. All products come with more than 2 years warranty service.

Company Capabilities

100,000m² factory with 250 workers and 30+ senior engineers
4 production lines with 10,000+ sets annual production capacity
100% OQC testing with 25 detection contents
15 years experience in power transformer design and production
Products comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standards
Global on-site technical support available

75kVA 167 Kva Single Phase Distribution Transformer Pad Mounted IEEE Standard

Frequently Asked Questions

Who are we?

HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011, occupying 100,000 square meters. We specialize in reliable, high-performance solutions for global power systems.

How can we guarantee quality?

We always provide pre-production samples before mass production and conduct final inspection before shipment with QC & test reports. We accept Factory Acceptance Tests (FAT) and provide over 2 years warranty service.

Why choose us?

We have professional drawing and technical teams that can confirm all drawing contents within 7 days. Our 30+ senior engineers offer 24-hour online service with response within 30 minutes.

What services can we provide?

We accept OEM orders and offer flexible payment terms. Our services include custom design, manufacturing, testing, installation support, and long-term maintenance.
